If you have a DSL Connection than often times you’re going to have a DSL modem provided by your ISP. This modem however is fairly standardized in which case you can replace it with the HWIC-1ADSL which supporst up to the aDSL2+ Standard. Often times when you browse through your modem management page it shows very little information with regards to troubleshooting and basic monitoring of the circuit. the aDSL WIC/HWIC provides deteiled information when it comes to the actual underlying ATM circuit.

First off lets make sure you’re aware of the difference between the WIC-1ADSL and the HWIC-1ADSL. The WIC-1ADSL only supports ADSL over POTS with Annex A ITU 992.1 which is limited to 8Mbps due to the WIC shared bus architecture. The HWIC-1ADSL however supports ADSL over basic telephone service with Annex A ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+).

If you only have a WIC-1ADSL, newer standards such as aDSL2+ is backwards compatiable with ITU 992.1 so no worries. Keep in mind if you want to use an HWIC-1ADSL you’re going to need an Integrated Services Router (1800, 2800, 3800) or newer.

Quick Blog Summary

In this blog I’m going to discuss, demonstrate and verify the configuration of an aDSL Circuit terminated using a HWIC-1ADSL on a Cisco 2811. I will also be configuring this router to perform basic home office functions such as DHCP, ATM Interface Config, Dialer Interface Config, NAT, ZBF (Zone Based Firewall) and Port forwarding.

In order to utilize the Zone Based Firewall feature you’re going to need the Adv Security or greater IOS Image on your ISR.

If you’re using this blog to configure your very own router than you’re going to need a few pieces of information before you get started. First being your PPPoE Username and Password along with the VPI/VCI information used by your ISP. In this blog we’re using Verizon DSL Services so our VCI/VPI is 0/35

General Router Config

Before we get started in configuring the DSL stuff lets first start with some basic router configuration such as hostname, local logging, ssh configuration, local username/passwords, vty access-list, dns proxy and inside interface. Most of the general router configuration is fairly common so I wont get into the details, just review the config provided below;

service password-encryption
!
hostname 2811-ADSL-ROUTER
!
logging buffered 1048576 notifications
!
aaa new-model
aaa authentication login default local
aaa authorization console
aaa authorization exec default local if-authenticated
!
username jsmith privilege 15 password Cisco$123
!
ip domain-name FREECCNAWORKBOOK.COM
ip dns server
!
interface FastEthernet0/0
 ip address 192.168.1.1 255.255.255.0
 ip virtual-reassembly in
 no shut
!
no ip http server
no ip http secure-server
!
crypto key gen rsa general-keys modulus 2048
!
ip access-list extended VTY_ACCESS
 permit ip 192.168.1.0 0.0.0.255 any
!
line vty 0 4
 access-class VTY_ACCESS in
 transport input ssh
!
end

In a nut shell, SSH has been enabled and telnet has been disabled along with an SSL access-list and the local LAN interface has an IP Address of 192.168.1.1/24 and DNS Proxy has been configured.

DHCP Configuration

Next up is the DHCP Configuration

ip dhcp pool SOHO_NETWORK
 network 192.168.1.0 255.255.255.0
 default-router 192.168.1.1
 dns-server 192.168.1.1

ATM Interface Config

So now we’re getting into the nitty gritty and configuring the actual HWIC-1ADSL Interface which if installed into slot0 of the Cisco 2811 will be ATM0/0/0

In a nut shell the ATM interface configuration is extremely simple. It is recommended by best practice to create a sub-interface which represents the PVC that will be used for the DSL Service. In this case with Verizon the PVC is 0/35 so we’re going to use sub-interface ATM0/0/0.35 as shown below;

interface ATM0/0/0
 no ip address
 no atm ilmi-keepalive
!
interface ATM0/0/0.35 point-to-point
 pvc 0/35
  pppoe-client dial-pool-number 1
!

Also note the pppoe-client dial-pool-number 1 command that is configured under the PVC. This command is used to bind the PVC to the dial pool member 1 using the PPPoE Client.

Dialer Interface Config

Next up is where most of the WAN interface configuration resides. The Dialer Interface is responsible for authenticating via PPPoE using PAP or CHAP and negotiating an IP Address. Because PPPoE utilizes an MTU of 1492 this is where that would be set.

The Dialer interface is where you must provide your CHAP and/or PAP username configuration.

interface Dialer1
 description ### aDSL PPPoE Dialer Interface ###
 mtu 1492
 ip address negotiated
 ip virtual-reassembly in
 encapsulation ppp
 ip tcp adjust-mss 1452
 dialer pool 1
 dialer idle-timeout 0
 dialer persistent
 ppp authentication chap pap callin
 ppp chap hostname jsmith@verizon.net
 ppp chap password Cisco$123
 ppp pap sent-username jsmith@verizon.net password Cisco$123
 ppp ipcp route default
 ppp ipcp dns accept
!

You’ll should notice the dialer pool 1 command which is used to associate the dialer interface with pool. Pool 1 is also associated to interface ATM0/0/0.35 PVC 0/35. With the dialer persistent command configured, the interface will automatically attempt to dial, in this case authenticate via PPPoE over the ATM PVC.

The ip tcp adjust-mss 1452 is extremely important and most people commonly forget to configure it or configure it in the wrong location. This command is configured on the Dialer interface, not the local LAN physical interface as this would affect ALL traffic traversing the router and not just traffic passing through the PPPoE Dialer Interface. In a nut shell this command is used to ensure that TCP sessions negotiate an MTU lower than the maximum MTU needed to send/receive traffic on the dialer interface. If you forget to configure this command you’ll notice that some websites load and some don’t.

At this point you should be able to authenticate and receive an IP Address and ping to 4.2.2.2 because you’re accepting the default route provided via PPPoE Authentication due to the ppp ipcp route default command being configured on the dialer interface. You should also be accepting the DNS servers being provided via DHCP from your ISP.

2811-ADSL-ROUTER#show ip interface brief
Interface         IP-Address      OK? Method Status                 Protocol
FastEthernet0/0   192.168.1.1     YES unset  up                     up
FastEthernet0/1   unassigned      YES unset  administratively down  down
ATM0/0/0          unassigned      YES unset  up                     up
ATM0/0/0.35       unassigned      YES unset  up                     up
Dialer1           173.76.137.241  YES IPCP   up                     up
Virtual-Access1   unassigned      YES unset  up                     up
2811-ADSL-ROUTER#
2811-ADSL-ROUTER#ping 4.2.2.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 44/45/48 ms
2811-ADSL-ROUTER

If you are not able to obtain an IP Address first verify physical connectivity. This can be done via the show dsl interface atm0/0/0 command as demonstrated below;

2811-ADSL-ROUTER#show dsl interface atm0/0/0
ATM0/0/0
Alcatel 20190 chipset information
                ATU-R (DS)                      ATU-C (US)
Modem Status:    Showtime (DMTDSL_SHOWTIME)
DSL Mode:        ITU G.992.1 (G.DMT) Annex A
ITU STD NUM:     0x03                            0x1
Vendor ID:       'STMI'                          'ALCB'
Vendor Specific: 0x0000                          0x0000
Vendor Country:  0x0F                            0x0F
Chip ID:         C196 (3)
DFE BOM:         DFE3.0 Annex A (1)
Capacity Used:   99%                             84%
Noise Margin:     6.0 dB                          8.0 dB
Output Power:    14.0 dBm                        12.0 dBm
Attenuation:     62.5 dB                         31.5 dB
FEC ES Errors:    0                               0
ES Errors:       1258                            140
SES Errors:       0                               0
LOSES Errors:     0                               0
UES Errors:       0                               0
Defect Status:   None                            None
Last Fail Code:  None
Watchdog Counter: 0xAF
Watchdog Resets: 0
Selftest Result: 0x00
Subfunction:     0x00
Interrupts:      57826 (0 spurious)
PHY Access Err:  0
Activations:     10
LED Status:      OFF
LED On Time:     0
LED Off Time:    0
Init FW:         init_AMR-4.0.015_no_bist.bin
Operation FW:    AMR-4.0.015.bin
FW Source:       embedded
FW Version:      4.0.15

                 Interleave             Fast    Interleave              Fast
Speed (kbps):           992                0           448                 0
DS User cells:         1677                0
US User & Idle cells:                               7865597                0
Reed-Solomon EC:      44165                0             0                 0
CRC Errors:              57                0             2                 0
Header Errors:           38                0             1                 1
Total BER:                1600E-9                0E-0
Leakage Average BER:      1278E-9                0E-0
                        ATU-R (DS)      ATU-C (US)
Bitswap:               enabled            enabled

LOM Monitoring : Disabled


DMT Bits Per Bin
000: 0 0 0 0 0 0 0 6 7 7 7 6 6 6 6 6
010: 6 5 5 5 5 6 6 7 7 6 6 6 5 4 0 0
020: 0 0 0 0 0 0 0 5 5 6 6 6 7 0 7 7
030: 7 7 8 8 8 8 8 8 8 7 8 7 2 7 7 7
040: 7 5 5 4 5 5 5 5 5 5 5 2 5 5 5 4
050: 4 4 4 4 4 4 5 5 5 5 4 0 2 2 2 3
060: 3 3 3 2 2 2 2 0 0 0 0 0 0 0 0 0
070: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
080: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
090: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0A0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0B0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0C0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0D0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0E0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0F0: 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

DSL: Training log buffer capability is not enabled
2811-ADSL-ROUTER#

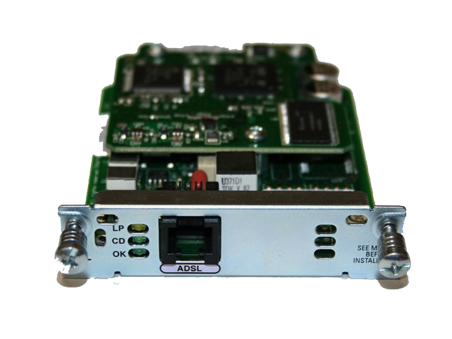

If the CD LED on your HWIC card is illuminated than that means the Carrier is Detected in which case you should be able to verify the signal attenuation, noise margin and other circuit information using the show dsl interface atm0/0/0

If your DSL circuit successfully trained you’ll also notice your Speed (kbps), in this case its 992 down and 448 up. After the circuit is trained and you’re still not getting an IP Address make sure your authentication configuration is correct and you can debug the authentication using the debug ppp authentication

NAT Configuration

Because ISP’s typically only give you a single DHCP IP Address you can use NAT Overload (Dynamic NAT) to NAT multiple inside nodes to a single outside IP Address. This configuration is relatively simple and provided in the example below;

interface FastEthernet0/0
 ip nat inside
!
interface Dialer1
 ip nat outside
!
ip access-list extended DYNAMIC_NAT_ACL
 permit ip 192.168.1.0 0.0.0.255 any
!
ip nat inside source list DYNAMIC_NAT_ACL interface Dialer1 overload
!

With the dynamic nat configuration completed you should now be able to ping out to 4.2.2.2 sourced from your LAN interface as shown below;

2811-ADSL-ROUTER#ping 4.2.2.2 source fa0/0
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 4.2.2.2, timeout is 2 seconds:
Packet sent with a source address of 192.168.1.1
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 44/44/44 ms
2811-ADSL-ROUTER#

Zone Based Firewall (ZBF Configuration)

Because NAT alone will not protect you on the internet, Cisco IOS offers a Zone Based Firewall feature which we’re going to configure. This blog will not go into depth regarding ZBF but if you want to know more about ZBF than check out the Zone Based Firewall Configuration lab found in the CCNA Security Workbook

zone security TRUSTED
zone security INTERNET
!
interface FastEthernet0/0
 zone-member security TRUSTED
!
interface Dialer1
 zone-member security INTERNET
!
zone-pair security TRUSTED->INTERNET source TRUSTED destination INTERNET
zone-pair security TRUSTED->TRUSTED source TRUSTED destination TRUSTED
!
class-map type inspect match-any TRUSTED_TO_INTERNET_PROTOCOL_INSPECTION
 match protocol http
 match protocol ftp
 match protocol smtp
 match protocol https
 match protocol dns
 match protocol ssh
 match protocol pop3
 match protocol imap
 match protocol telnet
 match protocol sip
 match protocol rtsp
 match protocol tcp
 match protocol udp
 match protocol icmp
!
policy-map type inspect TRUSTED_TO_INTERNET
 class type inspect TRUSTED_TO_INTERNET_PROTOCOL_INSPECTION
  inspect
!
policy-map type inspect TRUSTED
 class class-default
  pass
!
zone-pair security TRUSTED->INTERNET
 service-policy type inspect TRUSTED_TO_INTERNET
zone-pair security TRUSTED->TRUSTED
 service-policy type inspect TRUSTED_TO_TRUSTED
!

In order to verify that the Zone Based Firewall Configuration is working correctly we’ll use the show policy-map type inspect zone-pair command as demonstrated below while pinging 4.2.2.2 from FastEthernet0/0

2811-ADSL-ROUTER#show policy-map type inspect zone-pair

policy exists on zp TRUSTED->INTERNET
 Zone-pair: TRUSTED->INTERNET

  Service-policy inspect : TRUSTED_TO_INTERNET

    Class-map: TRUSTED_TO_INTERNET_PROTOCOL_INSPECTION (match-any)
      Match: protocol http
        4 packets, 95 bytes
        30 second rate 0 bps
      Match: protocol icmp
        1 packets, 40 bytes
        30 second rate 0 bps
      Match: protocol ftp
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol smtp
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol https
        7 packets, 140 bytes
        30 second rate 0 bps
      Match: protocol dns
        2 packets, 122 bytes
        30 second rate 0 bps
      Match: protocol ssh
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol pop3
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol imap
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol telnet
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol sip
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol rtsp
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol tcp
        10 packets, 256 bytes
        30 second rate 0 bps
      Match: protocol udp
        1 packets, 56 bytes
        30 second rate 0 bps

   Inspect
        Packet inspection statistics [process switch:fast switch]
        tcp packets: [0:13]
        udp packets: [12:2]
        icmp packets: [0:48]

        Session creations since subsystem startup or last reset 5
        Current session counts (estab/half-open/terminating) [4:0:0]
        Maxever session counts (estab/half-open/terminating) [4:1:1]
        Last session created 00:00:06
        Last statistic reset never
        Last session creation rate 5
        Maxever session creation rate 5
        Last half-open session total 0
        TCP reassembly statistics
        received 0 packets out-of-order; dropped 0
        peak memory usage 0 KB; current usage: 0 KB
        peak queue length 0


    Class-map: class-default (match-any)
      Match: any
      Drop
        0 packets, 0 bytes

policy exists on zp TRUSTED->TRUSTED
 Zone-pair: TRUSTED->TRUSTED

  Service-policy inspect : TRUSTED_TO_TRUSTED

    Class-map: class-default (match-any)
      Match: any
      Pass
        0 packets, 0 bytes
2811-ADSL-ROUTER

Port Forwarding (PAT Configuration)

There are many cases where people may want to perform port forwarding to network resources inside the network. Such as Web Servers, FTP Servers, DNS Servers or other services that should be publicly accessible.

In this example we’re going to configure port forwarding of TCP port 8080 on the IP Address assigned to the Dialer Interface to the server 192.168.1.25 port 80

ip nat inside source static tcp 192.168.1.25 80 interface dialer1 8080

Now that the NAT statement is configured you must keep in mind that we have ZBF configured and thus we’re required to “punch a hole” through the firewall. The following configuration is an example of a ZBF policy permitting INTERNET traffic to the TRUSTED zone which references an ACL named INTERNET_TO_TRUST_PERMITTED_TRAFFIC;

class-map type inspect match-any INTERNET_TO_TRUSTED
 match access-group name INTERNET_TO_TRUSTED_PERMITTED_TRAFFIC
!
policy-map type inspect INTERNET_TO_TRUSTED
 class type inspect INTERNET_TO_TRUSTED
  inspect
 class class-default
  drop
!
zone-pair security INTERNET->TRUSTED source INTERNET destination TRUSTED
 service-policy type inspect INTERNET_TO_TRUSTED
!
ip access-list extended INTERNET_TO_TRUSTED_PERMITED_TRAFFIC
 permit tcp any host 192.168.1.25 eq www
!

Note that the access control list entries should reference the REAL IP Address. Once this is all configured you can verify the configuration by having someone attempt to test the PAT statement.

If it is unsuccessful than verify your ZBF Configuration and NAT Statement. You should know that some ISP’s will prevent you from hosting your own network servers unless you have a business class account.
